ISP Programmers for ATE

b>FlushRunner for ATE (Automated Test Equipment) is a series of the specific products to be used with In-Circuit Test (ICT) systems it means with production testing systems of already mounted PCBs . These products can be easily integrated into the production line. Thanks to that, programming and testing can be combined together into a single, common procedure, to save time and to reduce costs.

FlashRunner hardware features are in general:

  • Power supply input 9 to 24V DC
  • Power voltage monitoring
  • 5 digital I/O lines
  • 2 digital I/O or 2 analog output lines
  • 2 programmable output voltages (0 to 5,5V, 0.5A and 0 to 15V, 0.25A)
  • 1 analog input line
  • 1 programmable clock output
  • Memory SD card (up to 2 GB)
  • 512 bytes on-board dynamic memory
  • On-board timekeeper and calendar
  • I/O protection
  • Optoisolated parallel control lines
  • Optoisolated RS-232 and Ethernet interfaces
  • Galvanic isolation

FlashRunner's open architecture makes its firmware easily upgradable to support both new devices and new features.

FlashRunner is set up and controlled via ASCII-based commands. FlashRunner can receive and execute commands in two ways:

  • Over the RS-232 or Ethernet connection
  • Via "scripts" stored in its SD card

FlashRunner for ATE




FR01AT0
3 100.00 €

FR01SPE0
3 100.00 €



FR3070A
2 700.00 €

FlashRunner for ATE are the universal single-channel ISP programmers. they supports devices manufactured by a wide range of semiconductor suppliers. The programming algorithms are not included in a price and are charged separately. We suggest direct contact to distributor to make the right selection.

FlashRunner for ATE includes the following models of single-channel programmers:

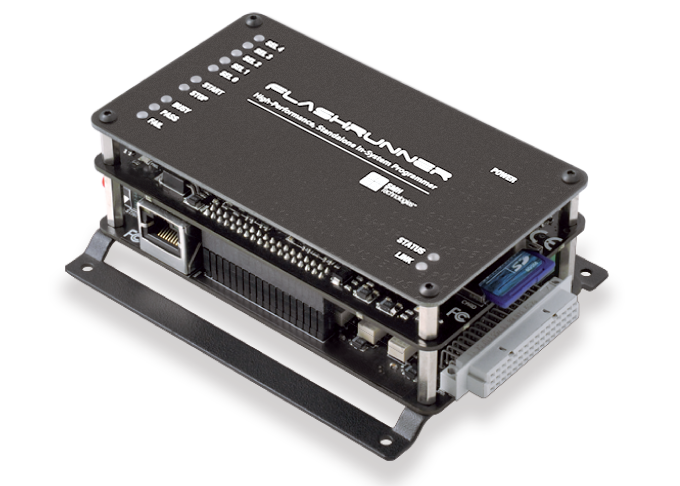

  • FR01AT0 – is a ISP system dedicated for ATE. It’s based on standard programming engine FR01ENG but the new features are added as a galvanic isolation of ISP I/O lines and an innovative power voltage monitoring.
  • FR01SPE0 – is a ISP system dedicated for SPEA ATE. It’s based on standard programming engine FR01ENG but the new features are added as a galvanic isolation of ISP I/O lines and an innovative power voltage monitoring.

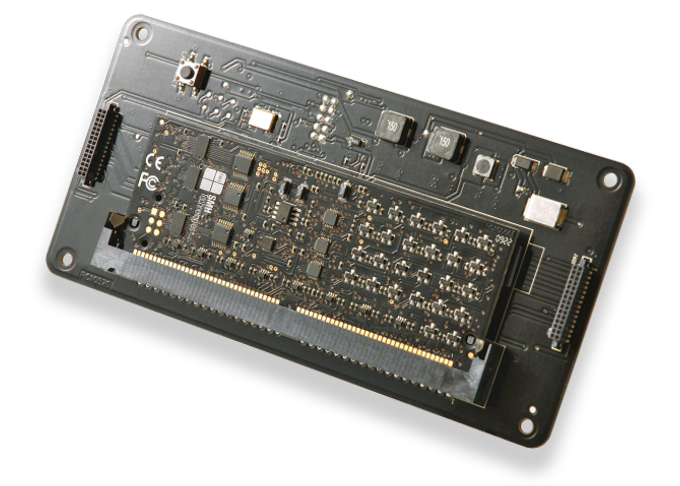

  • FR3070A – is a ISP system designed for Keysight Technologies (ex. Agilent) i3070 utility card. Following listed above features are not available:
  • FR3070A – is a ISP system designed for Keysight Technologies (ex. Agilent) i3070 utility card. Following listed above features are not available:
    • Optoisolated parallel control lines
    • RS232 interface and optoisolation of Ethernet channel
    • Galvanic isolation
    • Power voltage monitoring
