BeeProg3

Authorized Distributor

BeeProg3

(ELNEC 60-0061)



BeeProg3
(ELNEC 60-0061)
1 990.00 €

supports
056111
devices
000263
manufacturers
Free Support
3 years warranty

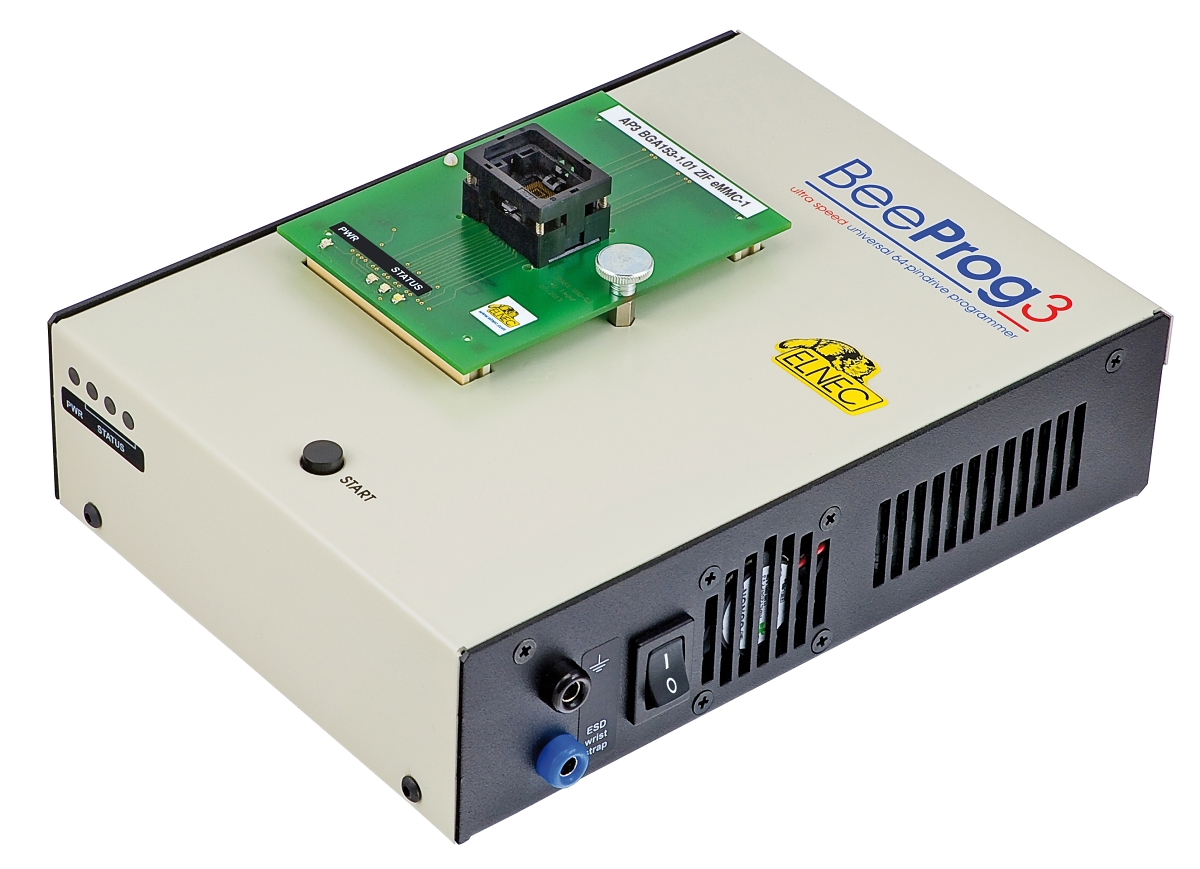

BeeProg3 (ELNEC 60-0061) is single-site, ultra-fast universal 64‑pin drive ELNEC's programmer focused on high-capacity memories.

Main features of BeeProg3 programmer:

  • 56,111 supported devices from 263 manufacturers by 3.54 version of software
  • ZIF socket not included - available as optional accessories based on a state of the art FPGA design, powerful ARM processor and internal SSD, is ready to program devices at theoretically possible speed
  • 64-pins rich-features, precise and powerful pin drivers provides programming signals for every technology of programmable devices
  • ESD protection on each pin of the pin driver
  • logic signals frequency up to 125MHz at 3.3V and 80MHz at 5V
  • supports devices with VCC voltages as low as 0.8V
  • ultra-fast programming speed, one of the fastest programmers worldwide. Sustainable programming speed greater than 22.5 MB/sec., the 2 GB eMMC NAND Flash programmed in less than 100 sec.
  • it utilizes both universal programming modules, dedicated for IC package type and specialized modules, designed optimized for specific device families
  • dual interface: USB (2.0 High-Speed) and LAN (100 Mbit)
  • 3 years warranty
