BeeProg3
(ELNEC 60-0061)
BeeProg3
(ELNEC 60-0061)
1 990.00 €
supports
7II07
devices
345
manufacturers
Free Support
3 years warranty

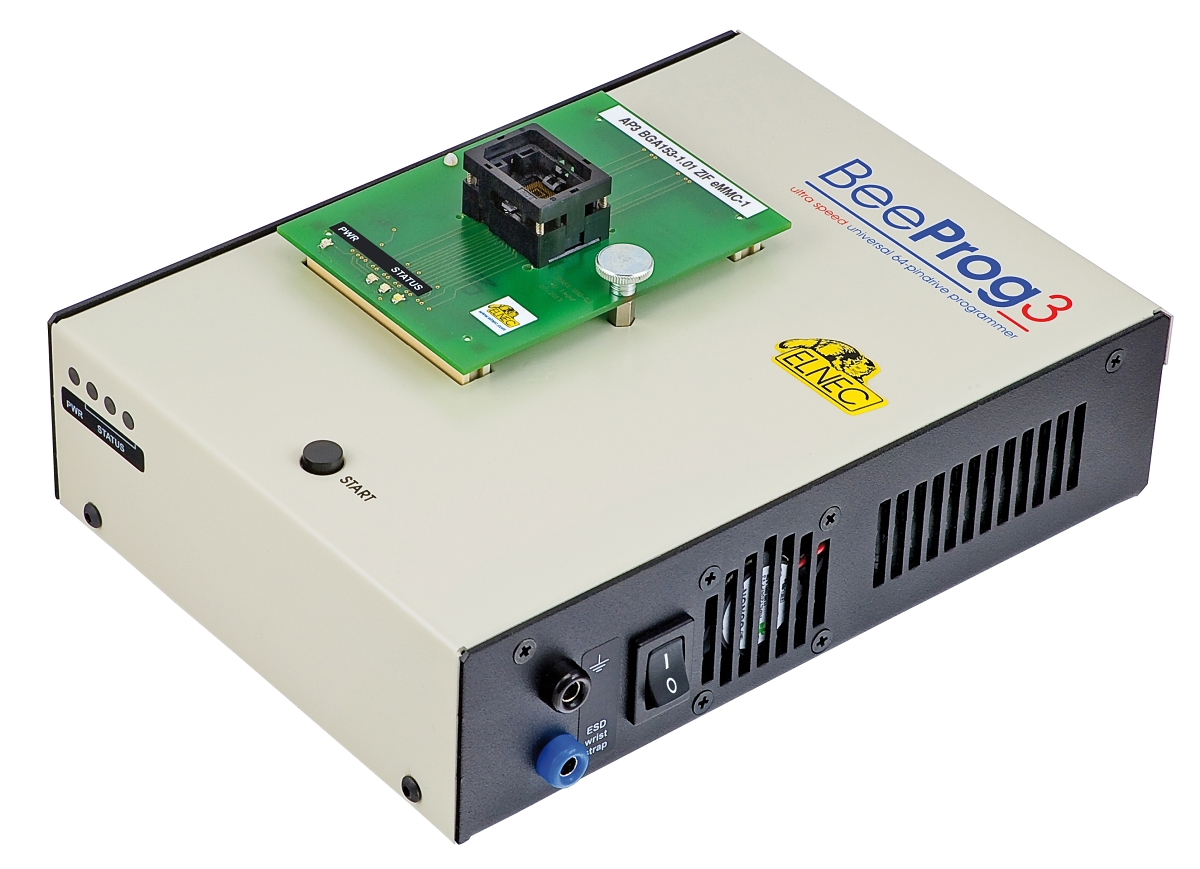

BeeProg3 (ELNEC 60-0061) is single-site, ultra-fast universal 64‑pin drive ELNEC's programmer focused on high-capacity memories.
Main features of BeeProg3 programmer:
- 71,107 supported devices from 345 manufacturers by Bad:version039 version of software
- ZIF socket not included - available as optional accessories based on a state of the art FPGA design, powerful ARM processor and internal SSD, is ready to program devices at theoretically possible speed
- 64-pins rich-features, precise and powerful pin drivers provides programming signals for every technology of programmable devices
- ESD protection on each pin of the pin driver
- logic signals frequency up to 125MHz at 3.3V and 80MHz at 5V
- supports devices with VCC voltages as low as 0.8V
- ultra-fast programming speed, one of the fastest programmers worldwide. Sustainable programming speed greater than 22.5 MB/sec., the 2 GB eMMC NAND Flash programmed in less than 100 sec.
- it utilizes both universal programming modules, dedicated for IC package type and specialized modules, designed optimized for specific device families
- dual interface: USB (2.0 High-Speed) and LAN (100 Mbit)
- 3 years warranty
